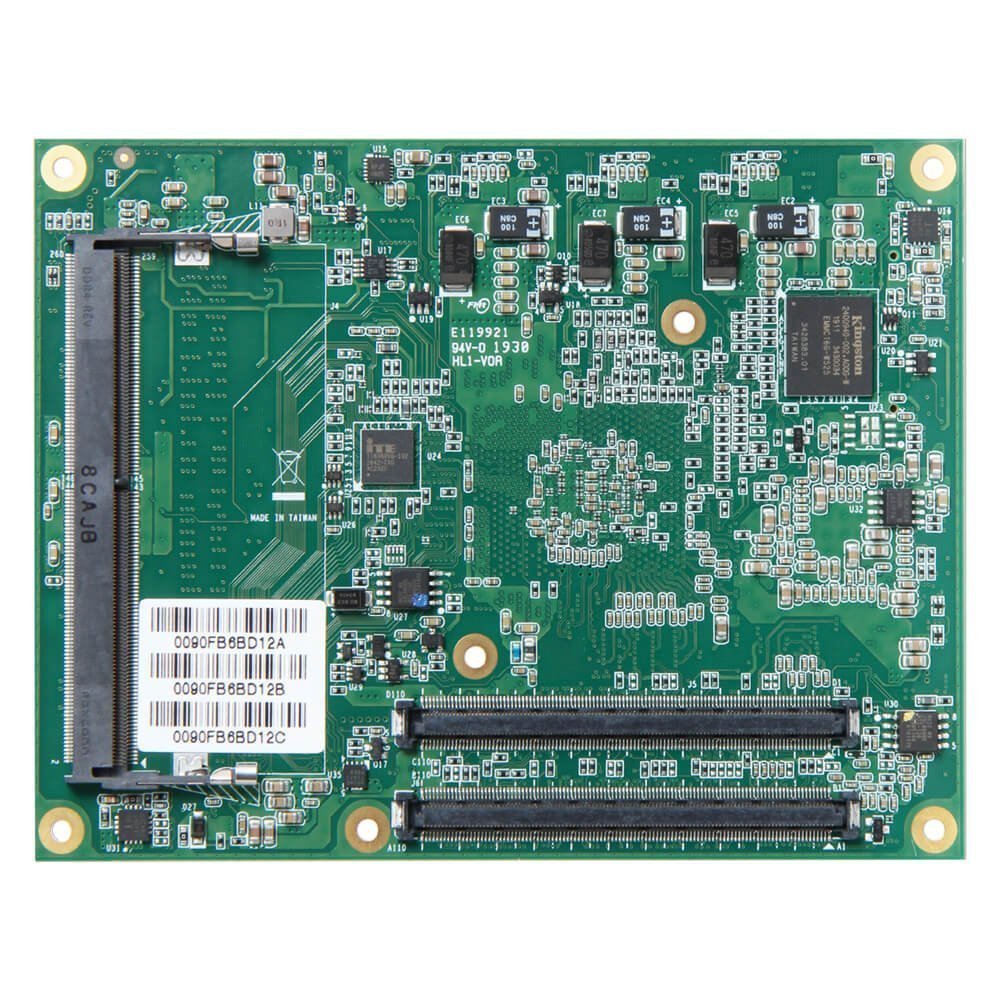

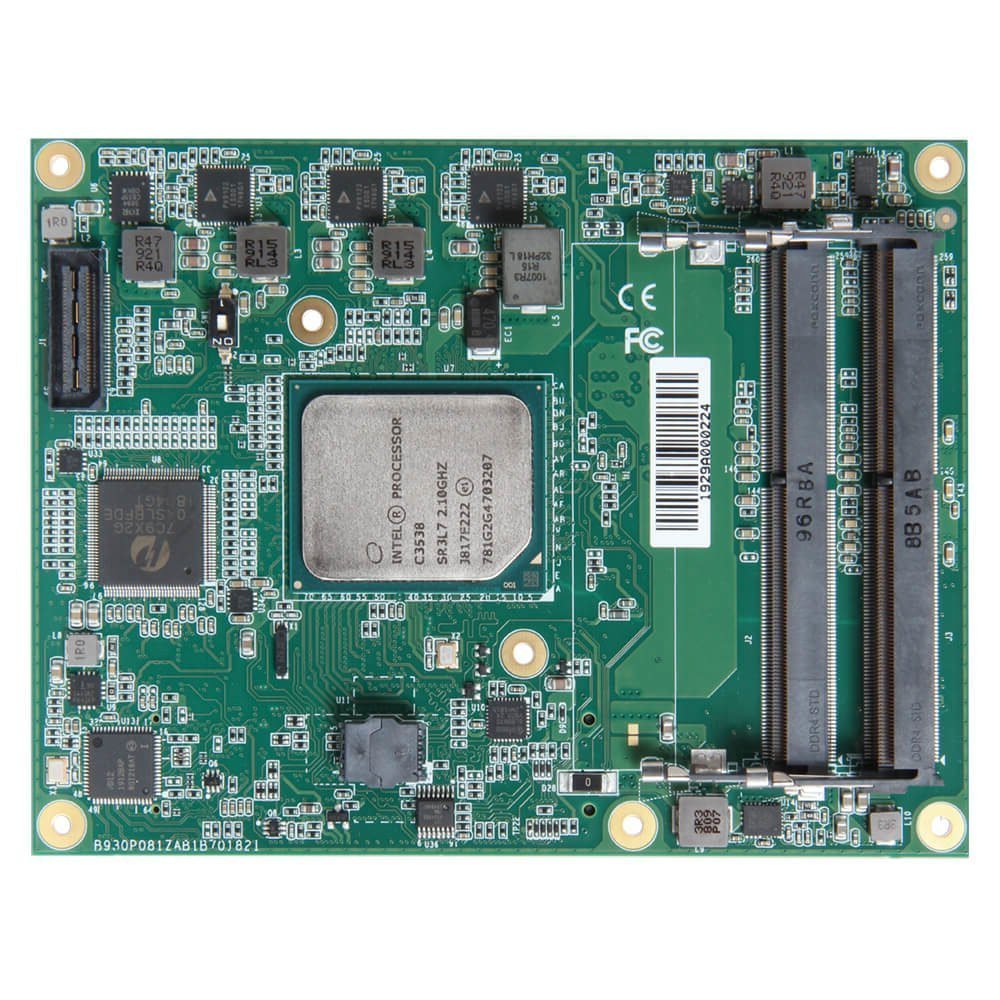

Type 7 COM Express? 模塊計算機PCOM-B701GT搭載英特爾凌動C3000R系列處理器，提供4x高速KR、4x PCIe 3.0 x2、2x USB 3.0、4x USB 2.0 與2x SATA III輸入/輸出擴充，支持英特爾QAT與寬溫。提供高效率與節能的實力，適合網通、云端服務器、工作站等應用。
| Model Name | PCOM-B701GT |
|---|---|
| Form Factor (mm) | COM Express? Basic (125 x 95mm) |
| COM Type | Type 7 |
| CPU/Clock/Cache | Intel? Atom? Processor* Intel? C3308 Intel? C3338 Intel? C3508 Intel? C3538 Intel? C3708 Intel? C3758 Intel? C3808 Up to 12 CPU cores* 4MB to 16MB cache* |
| Chipset | SoC |
| Memory | DDR4 1866/2133/2400 MT/s* Non-ECC/ECC* Single/Dual Channel* |
| USB | 4x USB 3.0 4x USB 2.0 |
| PCI Express | Up to 1x PCIe Gen3 x8 3x PCIe Gen3 x2 3x PCIe Gen3 x1 3x PCIe Gen2 x1 |
| Ethernet | Intel? I210IT 4x KR (10GbE) |
| Sound | N/A |
| Graphic Controller | N/A |
| Carrier Board | PCOM-C701(Type 7) PCOM-C702 (Type 7) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B701GT-C3808 | AB1-3H90Z | Available |
| PCOM-B701GT-C3758 | AB1-3J94Z | Available |
| PCOM-B701GT-C3708 | AB1-3H89Z | Available |
| PCOM-B701GT-C3538 | AB1-3H96Z | Available |
| PCOM-B701GT-C3508 | AB1-3H86Z | Available |
| PCOM-B701GT-C3338 | AB1-3J02Z | Available |
| PCOM-B701GT-C3308 | AB1-3J01Z | Available |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Heat Sink | TBD | Contact us |
| Cooler | TBD | Contact us |
| PCOM-C701(ATX Carrier Board) | AB1-3J61Z | Available |
| PCOM-C702(ATX Carrier Board) | AB1-3J60Z | Available |
