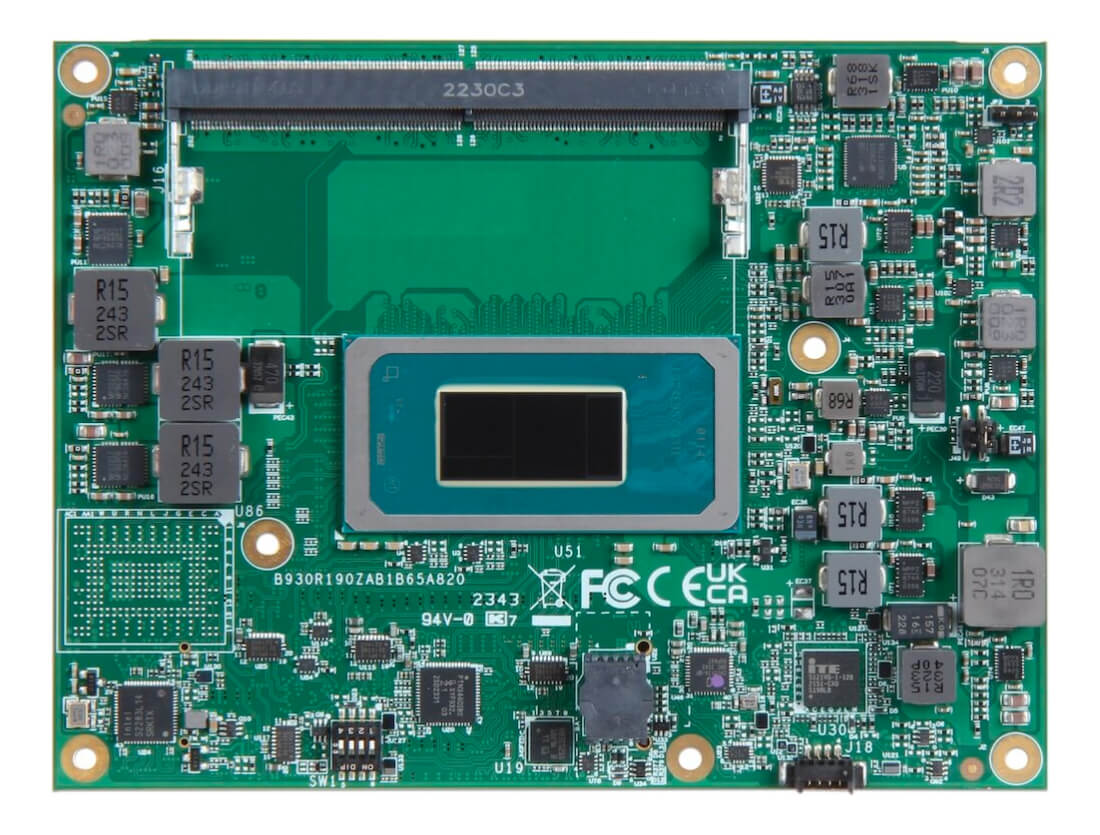

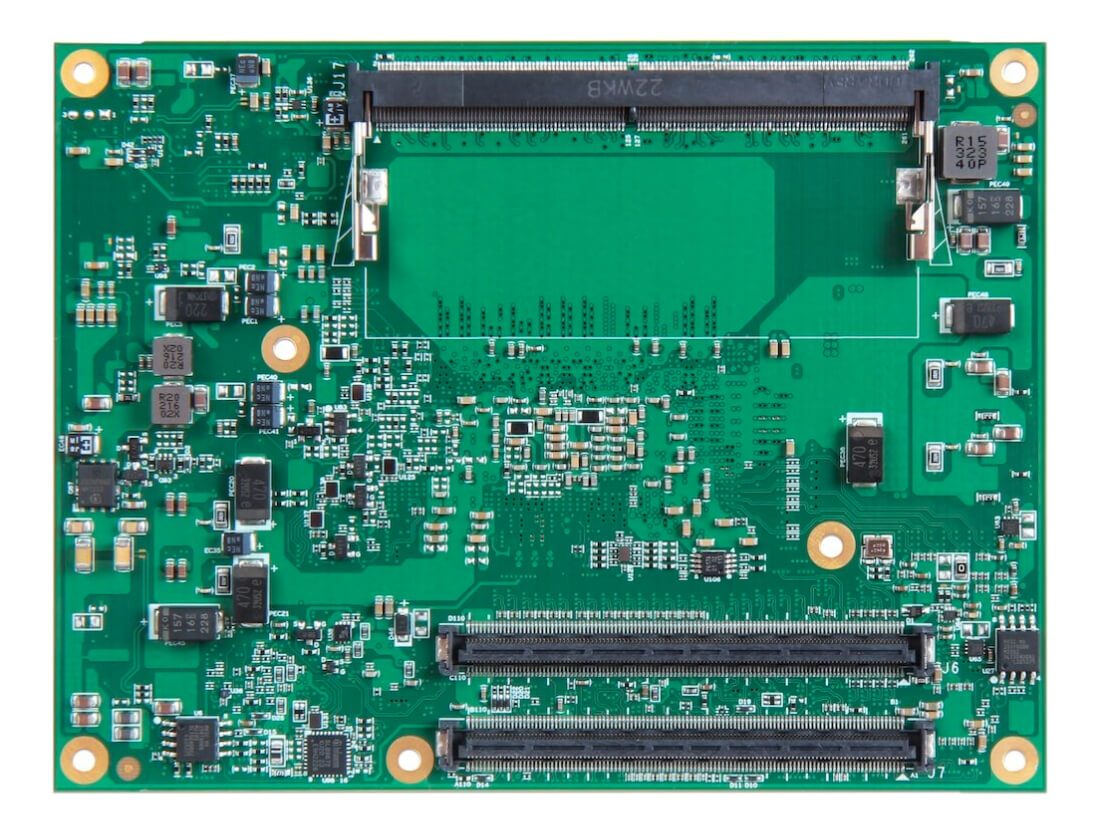

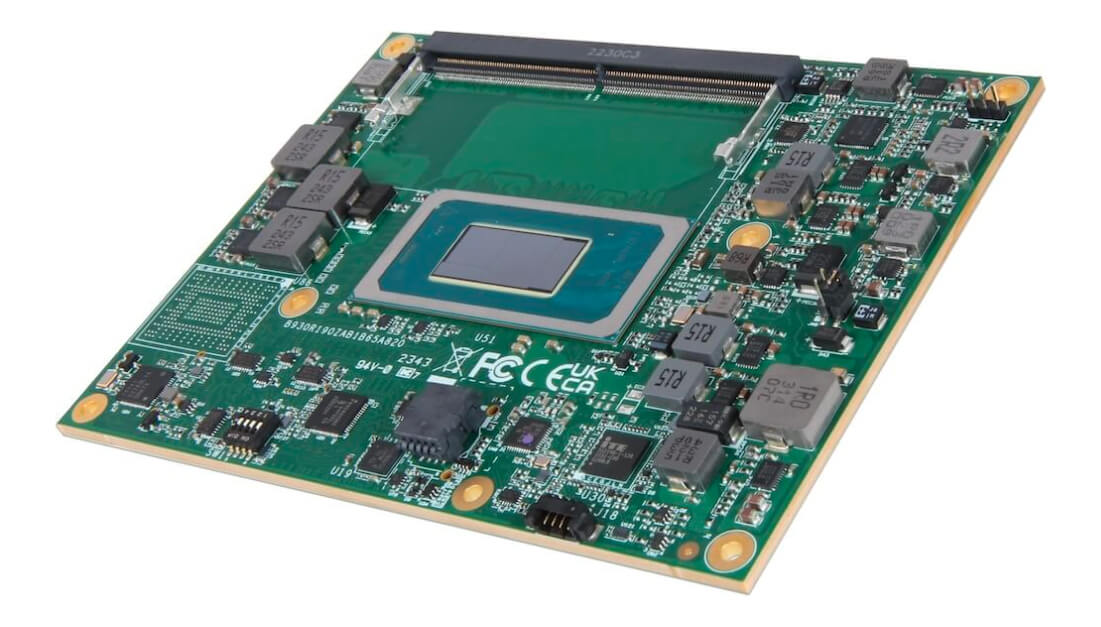

PCOM-B65A is COM Express module based on new Intel? Core Ultra platform(code name: Meteor Lake). It is compatible with COM Express Rev3.1 standard. The platform adopt the new gen Intel 4 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. It also support new integrated NPU for dedicated AI acceleration with up to 20x performance/watt improvement. This platform features the integration of Arc Graphics for up to 50% AI performance compared to previous generations. This module provides (up to) 24x PCIe Gen4 lanes, 4x USB 3.2 Gen 2, and 2x SATA. The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications, which is suit for mission critical use conditions and AI edge computing.
| CPU and General | ||||||||
| Model Name | PCOM-B65A | |||||||
| Form Factor | COM Express Type6 Basic Size (125 X 95mm) | |||||||
| CPU Series | Ultra 7 165H | Ultra 7 155H | Ultra 5 135H | Ultra 5 125H | Ultra 7 165U | Ultra 7 155U | Ultra 5 135U | Ultra 5 125U |
| Cores / Threads | 6P+8E +2LPE/22T |
6P+8E +2LPE/22T |
4P+8E +2LPE/18T |
4P+8E +2LPE/18T |
2P+8E +2LPE/14T |
2P+8E +2LPE/14T |
2P+8E +2LPE/14T |
2P+8E +2LPE/14T |
| Frequency | 1.4 GHz | 1.4 GHz | 1.7 GHz | 1.2 GHz | 1.7 GHz | 1.7 GHz | 1.6 GHz | 1.3 GHz |
| Turbo Frequency | 5.0 GHz | 4.8 GHz | 4.6 GHz | 4.5 GHz | 4.9 GHz | 4.8 GHz | 4.4 GHz | 4.3 GHz |
| Intel? Smart Cache | 24 MB | 24 MB | 18 MB | 18 MB | 12 MB | 12 MB | 12 MB | 12 MB |
| Intel? Gfx EU | 128 EU | 128 EU | 128 EU | 112 EU | 64 EU | 64 EU | 64 EU | 64 EU |
| Graphics Max Freq. | 2.3 GHz | 2.25 GHz | 2.2 GHz | 2.2 GHz | 2.0 GHz | 1.95 GHz | 1.9 GHz | 1.85 GHz |
| Processor TDP (Up / Nominal / Down) |
65W / 28W / 20W | 28W / 15W / 12W | ||||||
| PCH | SoC | |||||||
| Memory Type/Speed | DDR5 SO-DIMM up to 96GB 5600MT/s | |||||||
| ECC Memory Support | Non-ECC SO-DIMM | |||||||
| I/O Interface | |||
| SATA | 2x SATA (share with PCIe lane) | ||
| USB |
|
||
| Ethernet | Intel I226 series | ||
| Serial I/O | GPIO | 8 bit GPIO (default 4 input/4 output) | |
| I2C | Baud Rate : 400KHz | ||
| SMBus | Baud Rate : 100KHz | ||
| UART | TX/RX signal only | ||
| PCIe Express |
|
||
| Display | Module display interface | Output options | Resolution |
| eDP / LVDS (default eDP) | eDP eDP up to HBR3 | 3840 x 2160@120Hz | |
| LVDS (24bit, dual channel) | 1920 x 1200@60Hz | ||
| DDI 1/2/3 | DP up to HBR3 | 3840 x 2160@120Hz | |
| HDMI 2.1 | 3840 x 2160@120Hz | ||
| VGA | VGA | 1920 x 1200@60Hz | |
| Security | TPM 2.0 | ||
| MECHANICAL & ENVIRONMENT | |
| Dimension | 125 x 95mm |
| Power DC IN |
|
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 60°C |
| Certification | Contact us |
| MTBF | TBD |
| Vibration | TBD |
| OS |
|
