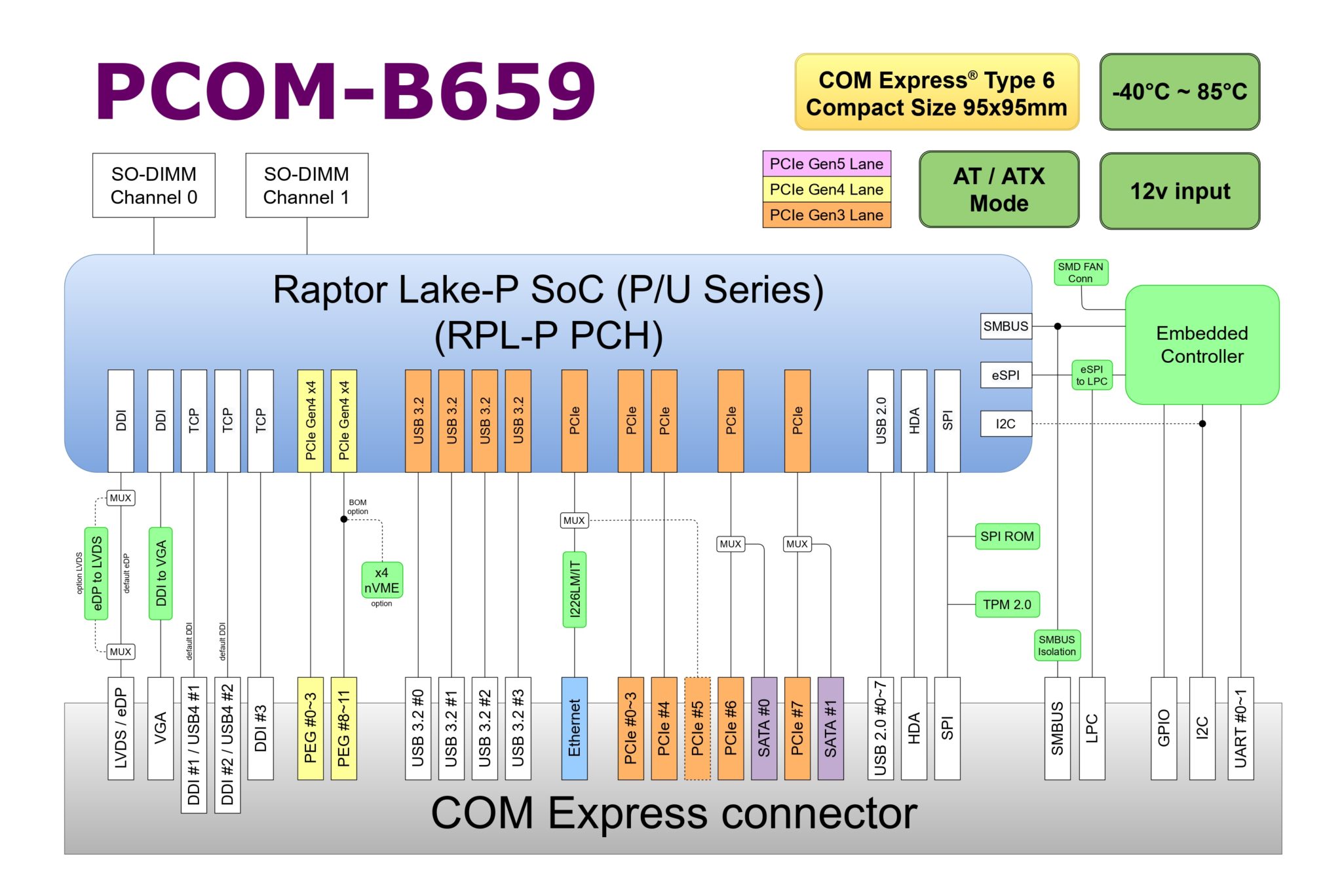

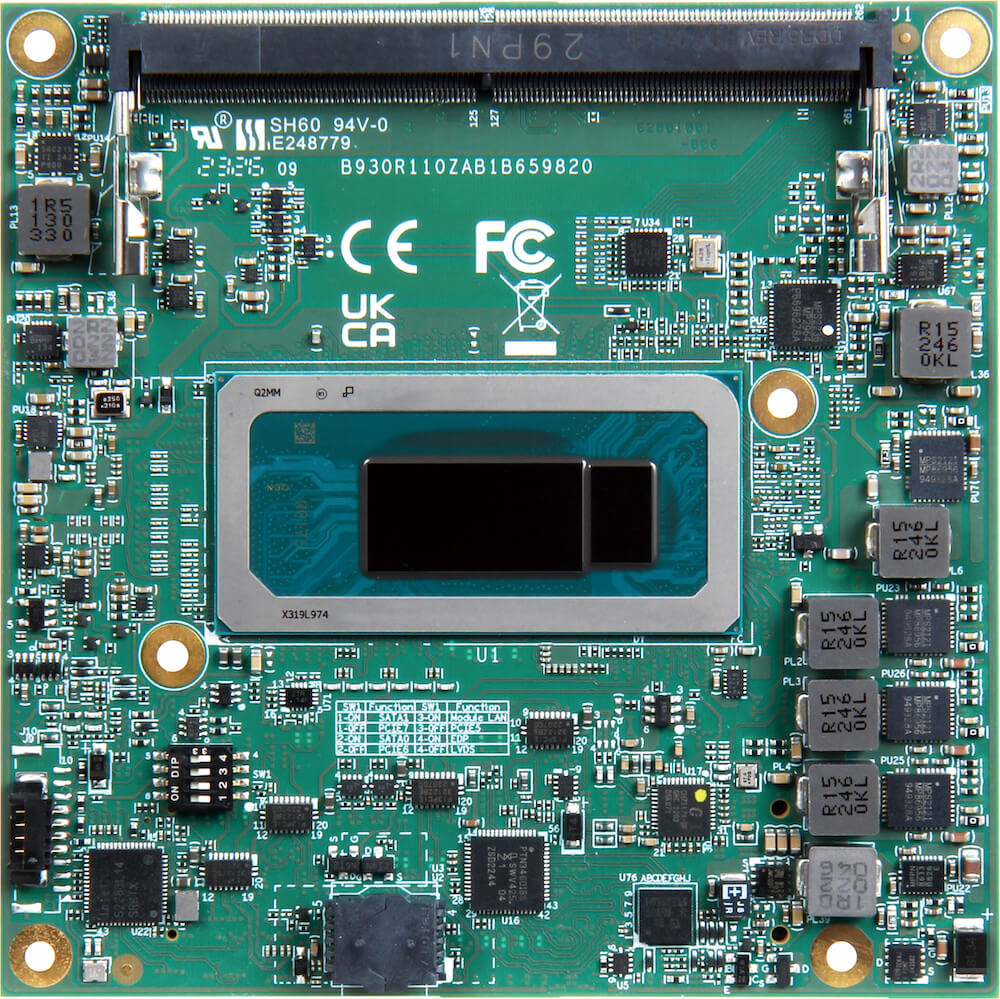

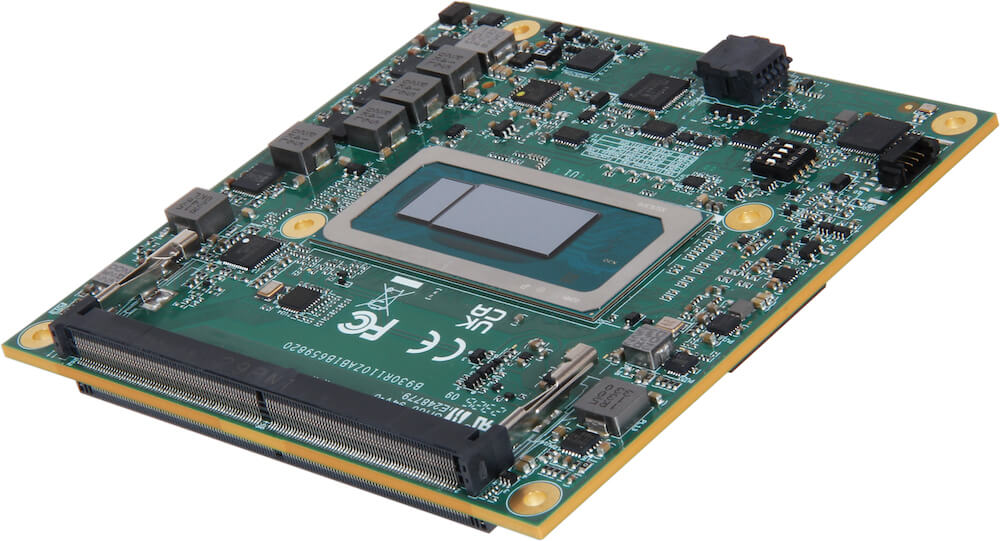

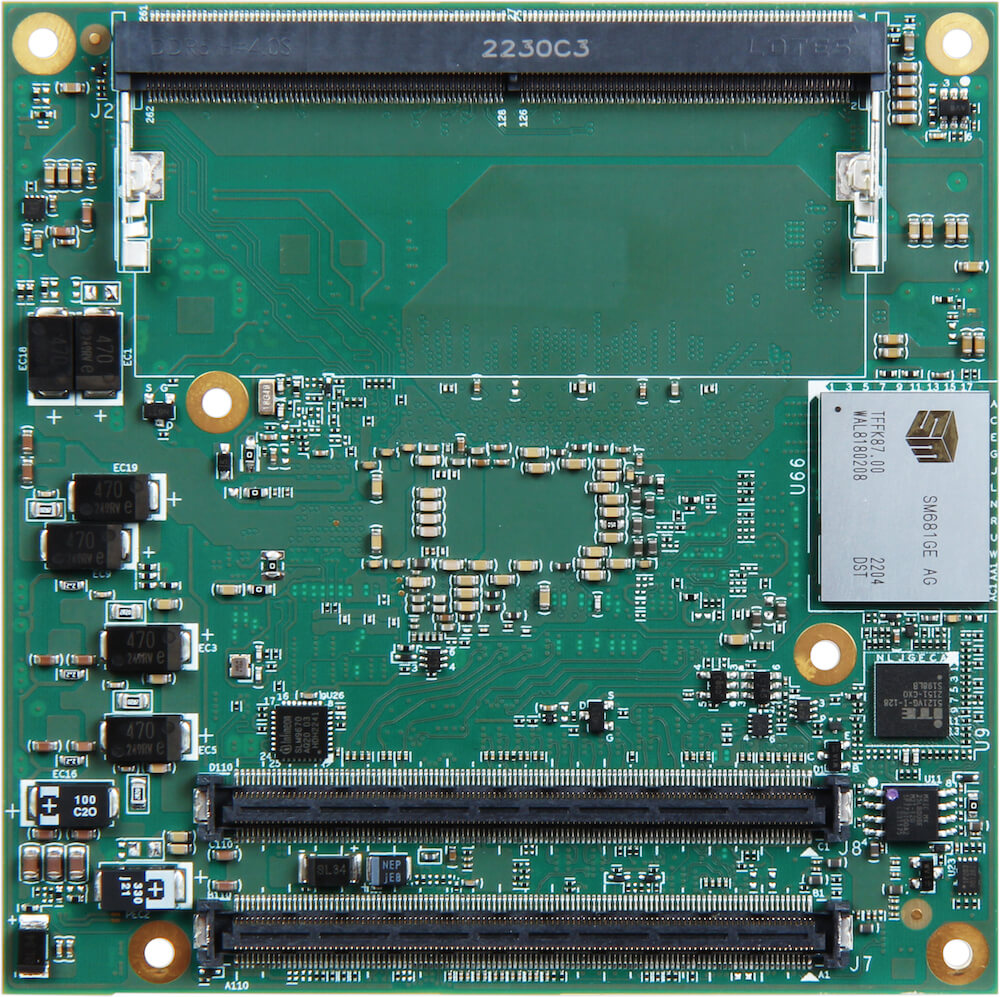

PCOM-B659 is COM Express module based on Intel? 13th?Gen P/U platform. It is compatible with COM Express Rev3.1 standard. The platform adopt Intel 7 lithography and VNNI instruction set, offers advance computing power with 15~28W thermal and embedded use condition for wide range application. PCOM-B659 supports PCIe Gen4 lanes, and 2x Non-ECC DDR5 SO-DIMM, which is suit for mission critical use conditions and AI edge computing. This module also provides (up to) 8x PCIe Gen3 x1 lanes, 2x optional USB4(alternative with DDI), 4x USB 3.2 Gen 2, and 2x SATA . The complete and flexible I/O capacity also mapped to wide range of embedded/industrial applications.
| General | ||
| Product | PCOM-B659 | |
| Form Factor | COM Express Type6 Compact Size (95 X 95mm) | |
| CPU Series | P series | U series |
| Cores P+E/Threads | Up to 6P + 8E/16T | Up to 2P + 8E/12T |
| Frequency | 1.7 ~ 1.9 GHz | 1.1 ~ 1.7 GHz |
| Turbo Frequency | Up to 4.8 GHz | Up to 4.9 GHz |
| Intel? Smart Cache | Up to 24 MB | Up to 12 MB |
| Intel? Gfx EU | Up to 96 EU | Up to 96 EU |
| Graphics Max Freq. | Up to 1.40 GHz | Up to 1.30 GHz |
| Processor TDP (Up / Nominal / Down) |
35W / 28 W / 20W | 28W / 15 W / 12W |
| PCH | SoC | |
| Memory Type/Speed | DDR5 SO-DIMM up to 96GB 5200MT/s | |
| ECC Memory Support | Non-ECC SO-DIMM (Support IBECC on industrial SKU) |
|
| I/O INTERFACE | |||
| SATA | SATA 2x SATA III share with PCIe lane | ||
| USB |
|
||
| Ethernet | Intel? I226 series | ||
| Serial I/O | GPIO | 8 bit GPIO (default 4 input/4 output) | |
| I2C | Baud Rate: 400KHz | ||
| SMBus | Baud Rate: 100KHz | ||
| UART | TX/RX signal only | ||
| PCI Express Gen4 | 2x Gen4 x4 | ||
| PCI Express Gen3 | 8x Gen 3.0 x1 (2 lanes share with SATA, 1 lane share with LAN) | ||
| Storage | Up to 1TB onboard NVMe SSD (share with PCIe Gen4 x4 lanes) | ||
| Display | Module display interface | Carrier output options | Resolution |
| eDP | eDP up to HBR3 | 7680 x 4320@60Hz | |
| DDI | DP up to HBR3 | 7680 x 4320 @30Hz | |
| DP up to HBR3 | 7680 x 4320 @60Hz | ||
| DP up to HBR3 | 7680 x 4320 @60Hz | ||
| Security | TPM 2.0 | ||
| CPU SKU List (P series) | ||||
| CPU Series | P series Embedded | |||
| i7-1370PE | i5-1350PE | i5-1340PE | i3-1320PE | |
| Cores P+E/Threads | 6P + 8E/16T | 4P + 8E/16T | 4P + 8E/16T | 4P + 4E/12T |
| Frequency | 1.9 GHz | 1.8 GHz | 1.8 GHz | 1.7 GHz |
| Turbo Frequency | 4.8 GHz | 4.6 GHz | 4.5 GHz | 4.5 GHz |
| Intel? Smart Cache | 24 MB | 12 MB | 12 MB | 12 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 80 EU | 48 EU |
| Graphics Max Freq. | 1.40 GHz | 1.40 GHz | 1.35 GHz | 1.35 GHz |
| Video Decode Boxes | 2 | 2 | 2 | 1 |
| Processor TDP (Up / Nominal / Down) | 35W / 28 W / 20W | |||
| IBECC | No | |||
| TSN/TCC | No | |||
| Support Temperature | 0°C to 60°C | |||
| CPU SKU List (U series) | |||||
| CPU Series | U series Embedded | ||||
| i7-1365UE | i5-1345UE | i5-1335UE | i3-1315UE | U300E | |
| Cores P+E/Threads | 2P + 8E/12T | 2P + 8E/12T | 2P + 8E/12T | 2P + 4E/8T | 1P + 4E/5T |
| Frequency | 1.7 GHz | 1.4 GHz | 1.3 GHz | 1.2 GHz | 1.1 GHz |
| Turbo Frequency | 4.9 GHz | 4.6 GHz | 4.5 GHz | 4.5 GHz | 4.3 GHz |
| Intel? Smart Cache | 12 MB | 12 MB | 12 MB | 10 MB | 8 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 80 EU | 64 EU | 48 EU |
| Graphics Max Freq. | 1.30 GHz | 1.25 GHz | 1.25 GHz | 1.20 GHz | 1.10 GHz |
| Video Decode Boxes | 2 | 2 | 2 | 1 | 1 |
| Processor TDP (Up / Nominal / Down) | 28W / 15 W / 12 W | ||||
| IBECC | No | ||||
| TSN/TCC | No | ||||
| Support Temperature | 0°C to 60°C | ||||
| CPU series | ||||||
| CPU Series | P series Industrial | U series Industrial | ||||
| i7-1370PRE | i5-1350PRE | i3-1320PRE | i7-1365URE | i5-1345URE | i3-1315URE | |
| Cores P+E/Threads | 6P + 8E/16T | 4P + 8E/16T | 4P + 4E/12T | 2P + 8E/12T | 2P + 8E/12T | 2P + 4E/8T |
| Frequency | 1.9 GHz | 1.8 GHz | 1.7 GHz | 1.7 GHz | 1.4 GHz | 1.2 GHz |
| Turbo Frequency | 4.8 GHz | 4.6 GHz | 4.5 GHz | 4.9 GHz | 4.6 GHz | 4.5 GHz |
| Intel? Smart Cache | 24 MB | 12 MB | 12 MB | 12 MB | 12 MB | 10 MB |
| Intel? Gfx EU | 96 EU | 80 EU | 48 EU | 96 EU | 80 EU | 64 EU |
| Graphics Max Freq. | 1.40 GHz | 1.40 GHz | 1.35 GHz | 1.30 GHz | 1.25 GHz | 1.20 GHz |
| Video Decode Boxes | 2 | 2 | 1 | 2 | 2 | 1 |
| (Up / Nominal / Down) | 35W / 28 W / 20W | 28W / 15 W / 12W | ||||
| IBECC | Yes | Yes | ||||
| TSN/TCC | Yes | Yes | ||||
| Support Temperature | -40°C to 85°C | -40°C to 85°C | ||||
| MECHANICAL & ENVIRONMENT | |
| Dimension | 95mm x 95 mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | 0°C to 60°C -40°C to 85°C (selected SKU) |
| Certification | Contact us |
| MTBF | TBD |
| Vibration | TBD |
| OS | Windows 10/11 Ubuntu |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B659-1335UE | TBD | In Development |
| PCOM-B659-1315UE | TBD | In Development |
| PCOM-B659-U300E | TBD | In Development |
| PCOM-B659-1370PRE | TBD | In Development |
| PCOM-B659-1350PRE | TBD | In Development |
| PCOM-B659-1320PRE | TBD | In Development |
| PCOM-B659-1365URE | TBD | In Development |
| PCOM-B659-1345URE | TBD | In Development |
| PCOM-B659-1315URE | TBD | In Development |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Cooler (Heatpipe) |
TBD | In Development |
| Heatsink (Heatpipe) |
TBD | In Development |
| Heatspreade (Heatpipe)r |
TBD | In Development |
| PCOM-C60R Mini-ITX Carrier |
AB1-3P78 | Available |
| PCOM-C605B ATX Evaluation Carrier |
AB1-3G22 | Available |
