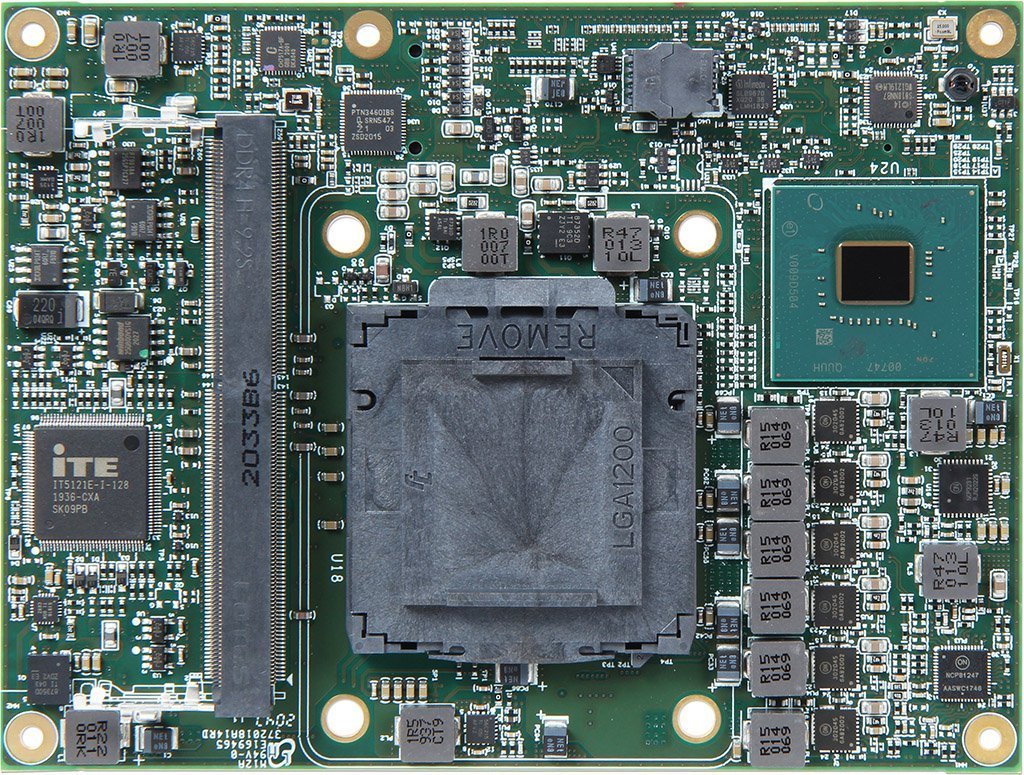

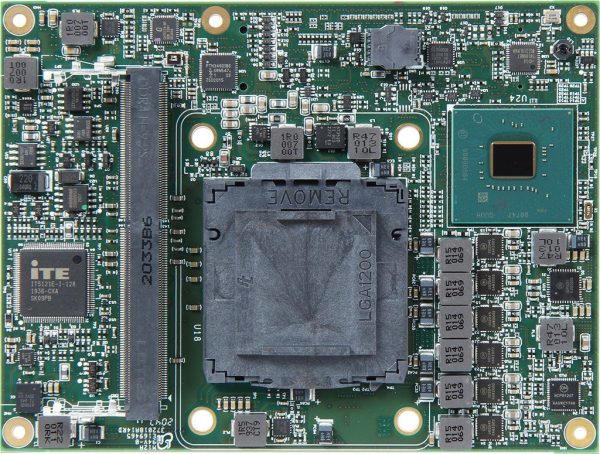

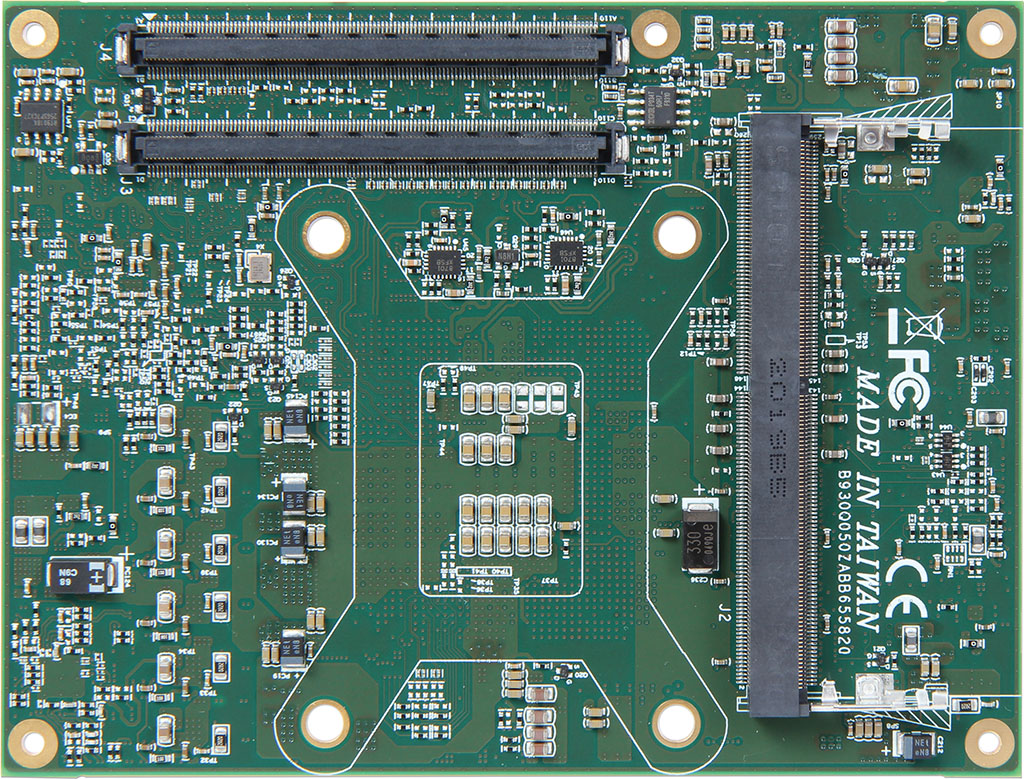

Type 6 COM Express? 模塊計算機PCOM-B655VGL搭載英特爾酷睿處理器并與COMe 3.0 Type 6 carrier板兼容，并且桌上型處理器提供比行動版更高運算效能與較低成本。PCOM-B655VGL依不同型號支持修正錯誤/非修正錯誤內存DDR4滿足不同應用，并提供一個PCIe x16、八個PCIe x1(另外 選項:一個PCIe x4)、四個USB 3.2 Gen2與四個SATA III。
| Model Name | PCOM-B655VGL |
|---|---|
| Form Factor (mm) | COM Express? Basic (125 x 95mm) |
| COM Type | Type 6 |
| CPU/Clock/Cache | Intel? 10th Generation Core? 35W Desktop processor* Intel? i9-10900TE Intel? i7-10700TE Intel? i5-10500TE Intel? i3-10100TE Up to 10 CPU cores* 6MB to 20MB cache* |
| Chipset | Q470E/W480E |
| Memory | DDR4 2933MT/s* Non-ECC/ECC* Dual Channel* |
| USB | 4x USB 3.2 Gen2 8x USB 2.0 |
| PCI Express | 1x PCIe 3.0 x16 8x PCIe 3.0 x1 |
| Ethernet | Intel? I219LM |
| Sound | Intel? High Definition Audio |
| Graphic Controller | Intel? UHD Graphics 630* |
| Carrier Board | PCOM-C60B (Type 6) |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B655VGL-W480E | AB1-3K44 | Contact us |
| PCOM-B655VGL-Q470E | AB1-3K80 | Contact us |
| Accessory | Ordering P/N | Status |
|---|---|---|
| PCOM-C60B(ATX Carrier Board) | AB1-3G22Z | Contact us |
| Cooler | B9971950 | Contact us |
